WebHook API
pyPreservica now contains APIs for accessing the web hook API.
Webhooks are “user-defined HTTP callbacks”. They are triggered by some Preservica event, such as ingesting objects into the repository. When that event occurs, Preservica makes an HTTP request to the URL configured for the webhook.
Unlike the traditional process of “polling” in which a client asks the repository if anything has changed, web hooks automatically send out information to subscribed systems when certain events have happened.
To receive web hook notifications the 3rd party application requires a web server which can process HTTP POST requests.
To authenticate messages from Preservica to prevent spoofing attacks, the messages are verified through the use of a shared secret key.
The Webhook API requires the user to have at least the repository manager role, ROLE_SDB_MANAGER_USER
Subscribing
Before a system can receive notifications from Preservica, it must subscribe to a notification trigger.
Preservica currently supports four different triggers:
“MOVED” An Entity has been moved
“SECURITY_CHANGED” The security tag on an Entity has changed
“INDEXED” The ingest has completed and the search index updated
“INGEST_FAILED” The ingest failed
The “Indexed” notification is sent after an object has been ingested and the full text index has been extracted, at this point the thumbnail and search contents are available.
When creating a new subscription service you need to generate a shared secret key and pass it as an argument to the subscribe method. This is used to verify the web service which will receive the web hooks.
The URL must be a publicly addressable web server.
webhook = WebHooksAPI()
webhook.subscribe("http://my-webhook-server.com:8080/", TriggerType.INDEXED, "my_shared_secret")
The given URL host will need to respond to a validation challenge during the subscription request. Preservica will make a POST request to the URL with a challengeCode query parameter. The receiver must respond with the expected challenge response or the subscription will fail. The challenge response must take the form:
{
"challengeCode": "challengeCode",
"challengeResponse": "hexHmac256Response"
}
where hexHmac256Response is a hex hmac256 of the challengeCode using the shared secret as the hmac key.
If the web server is unable to correctly verify the subscription then an exception is thrown.
Listing Subscriptions
You can query the system for a list of current subscriptions for a tenancy.
webhook = WebHooksAPI()
json_doc = webhook.subscriptions()
print(json_doc)
Unsubscribe
To unsubscribe to a web hook, you need the subscription id
webhook = WebHooksAPI()
webhook.unsubscribe("c306c99ca3a736124fa711bec53c737d")
To unsubscribe to all web hooks use
webhook = WebHooksAPI()
webhook.unsubscribe_all()
Reference Web Server
To receive web hook notifications pyPreservica has provided a reference web server implementation which provides support for negotiation of the challenge request handshake during the subscription request and verification of each webhook event request.
To implement the web server, extend the base class WebHookHandler and implement a single method do_WORK() this method is called everytime Preservica calls the web hook. This method is therefore where any processing takes place. For example updating a catalogue system etc.
class MyWebHook(WebHookHandler):
def do_WORK(self, json_payload):
"""
Process the event
"""
The handler can then be used to create a web server, the web server should be run from the same directory as a credential.properties file containing the shared secret which was used to create the web hook subscription.
[credentials] secret.key=my_shared_secret
For example a simple web hook server which prints the events to the console as they arrive would be:
from http.server import HTTPServer
from sys import argv
from pyPreservica import *
class MyWebHook(WebHookHandler):
def do_WORK(self, json_payload):
print(json_payload)
if __name__ == '__main__':
config = configparser.ConfigParser(interpolation=configparser.Interpolation())
config.read('credentials.properties', encoding='utf-8')
secret_key = config['credentials']['secret.key']
if len(argv) > 1:
arg = argv[1].split(':')
BIND_HOST = arg[0]
PORT = int(arg[1])
print(f'Listening on http://{BIND_HOST}:{PORT}\n')
httpd = HTTPServer((BIND_HOST, PORT), MyWebHook)
httpd.secret_key = secret_key
httpd.serve_forever()
The web server would then be started using:
$ python3 server.py 0.0.0.0:8000
A more interesting web hook handler might be one which downloads the thumbnail image from each Asset as it is ingested using the pyPreservica EntityAPI()
class MyWebHook(WebHookHandler):
def do_WORK(self, json_payload):
client = EntityAPI()
for reference in list(json_payload['events']):
ref = reference['entityRef']
asset = client.asset(ref)
client.thumbnail(asset, f"{ref}.jpg")
Event Driven Serverless Architecture
In the examples above, a web server is used to receive the web hook notifications. This can turn out to be inefficient as the web server needs to be running on a server even when no notifications are being sent.
In turns out that webhooks are especially well suited to modern serverless architecture such as Amazon Lambda and Azure Functions. Running a dedicated web server can be inefficient and unnecessary.
AWS Lambda and Azure Functions are code fragments which are triggered to run from external events such as web hooks. This is a simple and cost-effective approach to processing events.
No application server provisioning and maintenance required
Web server infrastructure is provided for you through the API Gateway
Only pay for the milliseconds used
Highly Scalable
Secure
AWS has a dedicated set of infrastructure based on the API Gateway service which allows public API endpoints to be created. These API endpoints act as the “front door” for the webhook applications managing traffic management, CORS support, authorization and access control, throttling, and monitoring etc. For the Preservica webhook use case the API gateway only needs to accept HTTP POST requests.
When the API gateway receives a webhook notification it will pass the message payload from Preservica to the AWS Lambda function which will carry out the appropriate action.
AWS Lambda supports multiple languages such as Java, Go, PowerShell, Node.js, C#, Python, and Ruby code, so you can build your applications in the language of your choice.
A basic AWS Lambda function using API Gateway for Preservica web hooks in Python would look something like:
import json
import os
import hmac
import hashlib
def lambda_handler(event, context):
secret_key = os.environ.get('PRES_SECRET_KEY')
if 'queryStringParameters' in event:
if event['queryStringParameters'] is not None:
if 'challengeCode' in event['queryStringParameters']:
message = event['queryStringParameters']['challengeCode']
signature = hmac.new(key=bytes(secret_key, 'latin-1'), msg=bytes(message, 'latin-1'),
digestmod=hashlib.sha256).hexdigest()
return {
"statusCode": 200,
"headers": {
"Content-Type": "application/json"
},
"body": json.dumps({
"challengeCode": f"{message}", "challengeResponse": f"{signature}"})
}
else:
if 'Preservica-Signature' in event['headers']:
verify_body = f"preservica-webhook-auth{event['body']}"
signature = hmac.new(key=bytes(secret_key, 'latin-1'), msg=bytes(verify_body, 'latin-1'),
digestmod=hashlib.sha256).hexdigest()
doc = json.loads(event['body'])
if signature == event['headers']['Preservica-Signature']:
for reference in list(doc['events']):
ref = reference['entityRef']
## DO WORK HERE
return {
"statusCode": 200,
"headers": {
"Content-Type": "application/json"
},
"body": json.dumps(event['body'])
}
Where we are fetching the shared key from the environment variables.
For a description of how to automate the process of creating simple webhook services see https://jcarr.org.uk/2026/01/24/webhook-deployment/

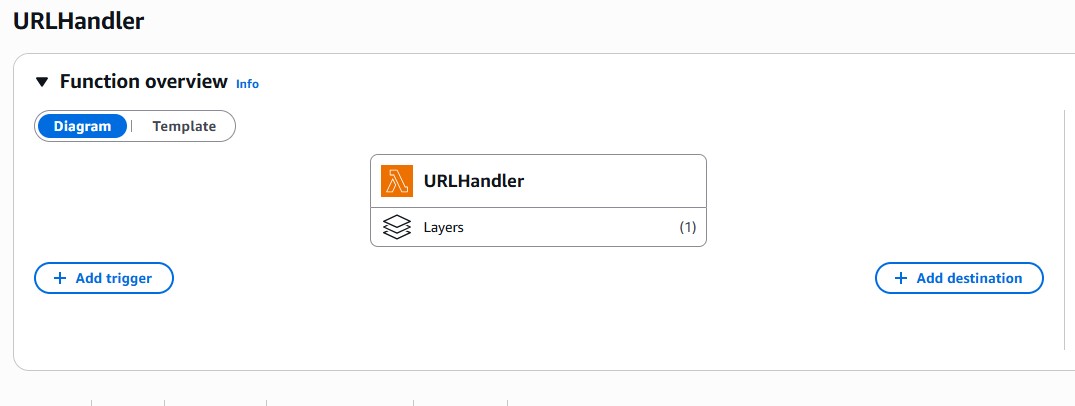

AWS also provides a simplified Lambda URL function which can be accessed directly from a URL without using the API Gateway.
A function URL is a dedicated HTTP(S) endpoint for your Lambda function. When you create a function URL, Lambda automatically generates a unique URL endpoint for you.
To use the simplified Function URL include the LambdaURLHandler class as follows.
The pyPreservica layer required to import pyPreservica is available from https://github.com/carj/pyPreservica/releases/tag/pyPreservica_4_0_0
For AWS west-1 regions the lambda layer is published with ARN: arn:aws:lambda:eu-west-1:884422621110:layer:pyPreservica4-0-0:5
import json
import os
from pyPreservica import *
client: EntityAPI = EntityAPI()
handler = LambdaURLHandler(os.environ.get('WEBHOOK_SECRET'), client)
def lambda_handler(event, context):
if handler.is_challenge(event):
return handler.verify_challenge(event)
for e in handler.process_event(event):
print(e.reference, e.title)
return {
"statusCode": 200,
"headers": {
"Content-Type": "application/json"
}
}
Code outside the handler such as the creation of the SDK EntityAPI class runs during the initialization phase (cold start), not on every invocation. Lambda reuses the execution environment for subsequent calls, so that code only runs again if a new environment is spun up.
